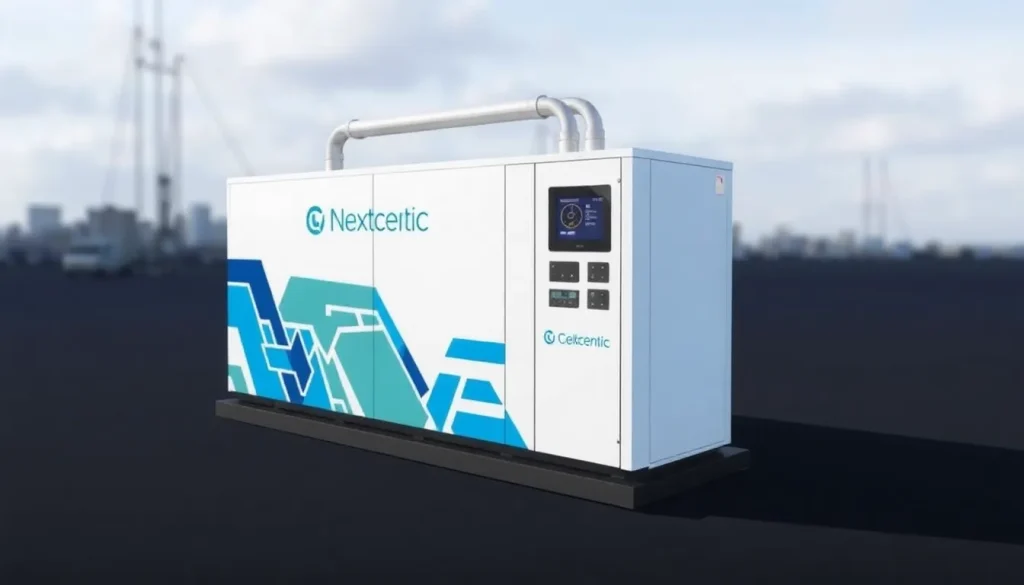

NextGen Hydrogen Fuel Cell System by Cellcentric

As the world increasingly focuses on sustainable alternatives to fossil fuels, hydrogen fuel cell technology stands out as a promising solution for decarbonizing heavy-duty transportation. Among the leaders in this innovation is cellcentric, a joint venture between Daimler Truck AG and Volvo Group. Their NextGen hydrogen fuel cell system not only addresses the pressing need for CO2-neutral transportation but also emphasizes the importance of total cost of ownership (TCO) for fleet operators. This article delves into the specifications, efficiency, and practical applications of this pioneering technology.

Understanding System Design and Integration

The NextGen hydrogen fuel cell system is ingeniously designed to weigh approximately 400 kg (882 lbs.), allowing it to fit seamlessly within the confines of conventional 13-liter diesel engine compartments. This strategic design enhances compatibility with existing vehicle architectures, making it easier for manufacturers and operators to integrate the system into their fleets.

Notably, the system is packaged as a single unit. This compact design not only optimizes performance but also simplifies maintenance and operational logistics. The low cooling requirements paired with high operating temperatures further contribute to the system's overall efficiency, making it an attractive option for modern fleet operators.

Performance and Technical Specifications of NextGen Fuel Cell

The NextGen fuel cell system boasts impressive technical specifications that highlight its capabilities:

• Single system package for streamlined integration.
• Continuous net power output of up to 375 kW (exceeding 500 HP).
• 20% reduction in fuel consumption compared to traditional alternatives.
• 40% decrease in waste heat generation at a net power of 300 kW.
• 40% increase in power density, enhancing overall efficiency.
• 40% reduction in system complexity, facilitating easier maintenance.

For a fully loaded 40-ton truck, cellcentric estimates an average hydrogen consumption of approximately 9.7 kg per 100 miles, translating to about 10.2 miles per kg of hydrogen. Such efficiency is crucial for long-haul operations where fuel costs significantly impact TCO.

Driving Efficiency and Operating Conditions

The NextGen system is engineered to perform reliably under challenging conditions, such as steep grades, high altitudes, and elevated temperatures. This resilience stems from three key technical improvements:

• Enhanced active area within the fuel cell stack for improved reaction efficiency.
• Advanced membrane electrode assembly (MEA) efficiency achieved through innovative catalyst formulations.
• Optimized system design and operating conditions that maximize fuel utilization.

These enhancements collectively aim to reduce fuel consumption at the cell level, ensuring that operators can achieve maximum efficiency even in the toughest driving environments.

Range, Payload, and Refueling Capabilities

The NextGen fuel cell trucks are capable of achieving impressive ranges exceeding 650 miles. This extended range is particularly beneficial for long-haul trucking where refueling opportunities may be limited. In comparison to battery-electric vehicles, these fuel cell trucks are lighter, which allows for a higher payload capacity—an essential factor for fleet operators seeking to maximize efficiency.

Moreover, refueling a hydrogen fuel cell vehicle is comparable in time to refueling a diesel vehicle. The environmental advantages are significant as well; these trucks emit only water vapor and heat, eliminating harmful pollutants and greenhouse gases from their operation.

Real-world Applications and Field Testing

Hydrogen fuel cell systems are particularly well-suited for various long-haul applications, including:

• Trucking and freight transport.
• Mining operations requiring heavy machinery.
• Coaching services for passenger transport.
• Rail applications benefiting from clean energy solutions.
• Stationary power generation for industrial use.

With over 30 years of experience in fuel cell development, cellcentric has integrated its BZA150 systems into prototype Class 8 trucks from both Daimler and Volvo. Current field tests have shown reliable performance across a variety of operating conditions, demonstrating the technology's readiness for commercial deployment.

Manufacturing Commitment and Industry Expansion

Production of the BZA150 system is currently underway at cellcentric’s facility located near Stuttgart, Germany. This marks a significant step toward large-scale manufacturing of high-efficiency fuel cells, which are crucial for meeting the growing demand in the heavy-duty transport sector.

Cellcentric and its stakeholders are committed to expanding the use of hydrogen fuel cell technology not only in Class 8 trucks but also across other applications. Their overarching goal is to enhance both economic viability and environmental performance in heavy-duty transport, positioning hydrogen as a cornerstone of future mobility solutions.

Future Prospects and Industry Implications

The transition to hydrogen fuel cell technology is poised to reshape the landscape of heavy-duty transportation. As companies like cellcentric continue to innovate and refine their systems, several implications emerge for the industry:

• Increased competition among manufacturers to develop more efficient and cost-effective solutions.
• Growth in the hydrogen supply chain, including production, storage, and distribution infrastructures.
• Greater collaboration between automotive manufacturers and energy companies to drive adoption.
• Potential regulatory incentives promoting the use of clean energy in transportation.

As the sector evolves, the need for comprehensive strategies to support the transition to hydrogen fuel cells will become increasingly vital. Stakeholders must collaborate to address challenges related to infrastructure, consumer acceptance, and market dynamics.

For those interested in a deeper understanding of hydrogen fuel cell technology, the following video provides valuable insights:

The NextGen hydrogen fuel cell system from cellcentric represents a significant advancement in sustainable transportation solutions. By focusing on efficiency, performance, and environmental impact, it aims to meet the demands of an evolving global market while contributing to the urgent need for decarbonization in the transportation sector.
